Specifications：

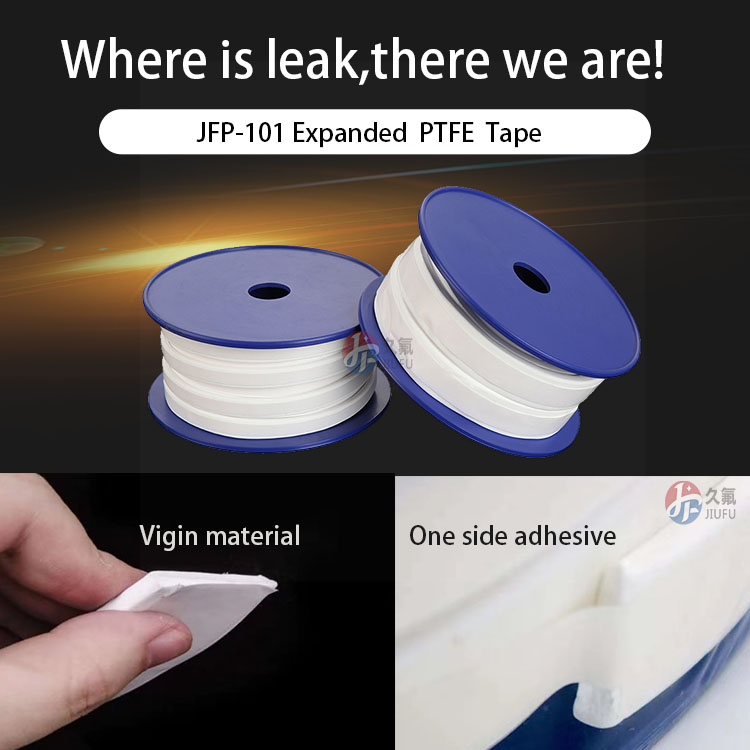

expanded ptfe gaskets and jointings is a gasket tape manufactured from 100% expanded PTFE fluorocarbon material, supplied as a continuous low density tape with a self-adhesive backing strip. It is sof
Expanded ptfe gaskets and jointings is a gasket tape manufactured from 100% expanded PTFE fluorocarbon material, supplied as a continuous low density tape with a self-adhesive backing strip. It is soft and spongy, permitting it to conform easily to all surface irregularities and to compress to a thin ribbon under pressure.
Expandable ptfe sealant joint tape is recommended as a gasket tape in steel, glass-lined, PVC and fiberglass pipe flanges, fume ducts, concrete lids, heat exchanges, fiber glass reinforced plastic vessels, pump housing flanges, steam vessel flanges, manhole and manhole covers, ceramic joints, ventilation ducts, hydraulic and pneumatic systems, water supply systems and turbine cases.

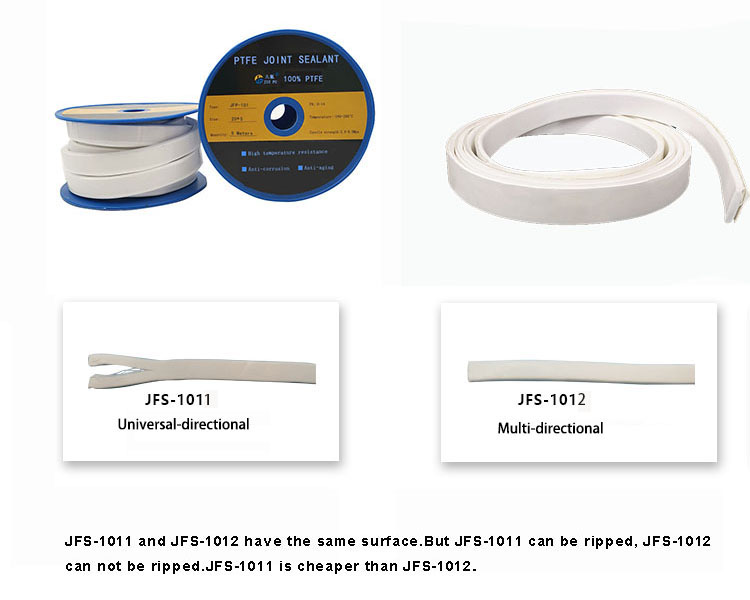

Index | Unit | Result(JFS-1011) | Result(JFS-1012) |
Material | 100% PTFE, soft and excellent elasticity. | ||
Color | White | ||
Tensile strength | Mpa | 12 | 8 |
Density | g/m3 | 0.75+0.05 | 0.85+0.05 |
Pressure | Mpa | <20 | |
PH | 0-14 | ||
Elongation | 20% | ||
Elongation at break | % | <120 | |
Matrix Tensile Strength | 30Mpa(4260 psi) | ||
Temperature | ℃ | Minimum:-450℉(-268 ℃) | |
Maximum Service:500℉(260℃) | |||
Short Term Max.:600℉(315℃) | |||
Compressibility-ASTM F 36 M | % | 45 | |
Recovery - ASTM F 36 M | % | 14 | |
Tensile Strength Across Grain - ASTM F152 | Mpa | 20 | |
Stress Retention- DIN 52913 | Mpa | 15 | |
Specific Leakage Rate L- VDI 2440 /TA LUFT | 2.6 x 10-7 | ||
expanded ptfe gaskets and jointings is manufactured from 100% PTFE, it is an inert material which can be used in many applications against corrosive environments, except molten alkali metals and elemental fluorine. Excellent Sealing for Commercial and Industrial Joint Surfaces
· Peel and Stick, One-Sided Self-Adhesive Strip
· High Pressure Resistance and Temperatures to 450 to 600 degrees F
· Outstanding Chemical Resistance (Non-Corrosive)
· Anti-Creeping Performance
